| SUITABLE LEVEL OF USE | TYPICAL USES |
| Intense, it is going to be stepped on continuously | Gardens of apartment block communities, condominium communities, community pools, etc... |
| High, it will be stepped on frequently | Private gardens, swimming pools or any other frequently walked-on area |
| Medium, you will step on it just occasionally | Private gardens, terraces, penthouse apartments, swimming pools or other less frequented areas |
| Low, merely decorative | Ornamental, decorative gardens, roundabouts, separators, shop windows, fairs, events, etc... |
REVOLUTION: You say you want a revolution
The REVOLUTION artificial grass is a creation oriented to satisfy the needs of even the most demanding client
This new turf is a revolution in the market. Because of the high caliber “micro monofilament in a C shape” with a density of 24,150 stitches / m2, we obtain a product of very high resistance, which is suitable for very intense traffic
However, the use of a yarn as efficient as that used in REVOLUTION artificial grass allows the production cost to be very low and we can offer the artificial grass with the best quality / market price ratio
The raw material used in its production and the design of the lawn make it an optimal model for installation in communal public use areas ( communities of owners, public pools, hotels, etc. ) with an extraordinarily competitive price
Artificial grass with fire rating “Efl” according to EN 13501-1
Beneath the paving stones, the beach
This new turf is a revolution in the market. Because of the high caliber “micro monofilament in a C shape” with a density of 24,150 stitches / m2, we obtain a product of very high resistance, which is suitable for very intense traffic
However, the use of a yarn as efficient as that used in REVOLUTION artificial grass allows the production cost to be very low and we can offer the artificial grass with the best quality / market price ratio
The raw material used in its production and the design of the lawn make it an optimal model for installation in communal public use areas ( communities of owners, public pools, hotels, etc. ) with an extraordinarily competitive price
Artificial grass with fire rating “Efl” according to EN 13501-1
Beneath the paving stones, the beach
Images
Formats and dimensions
Technical characteristics of the yarn
| DTEX | 10000 |
| Filament configuration | 12 straight + 6 curly |
| Straight yarn | |

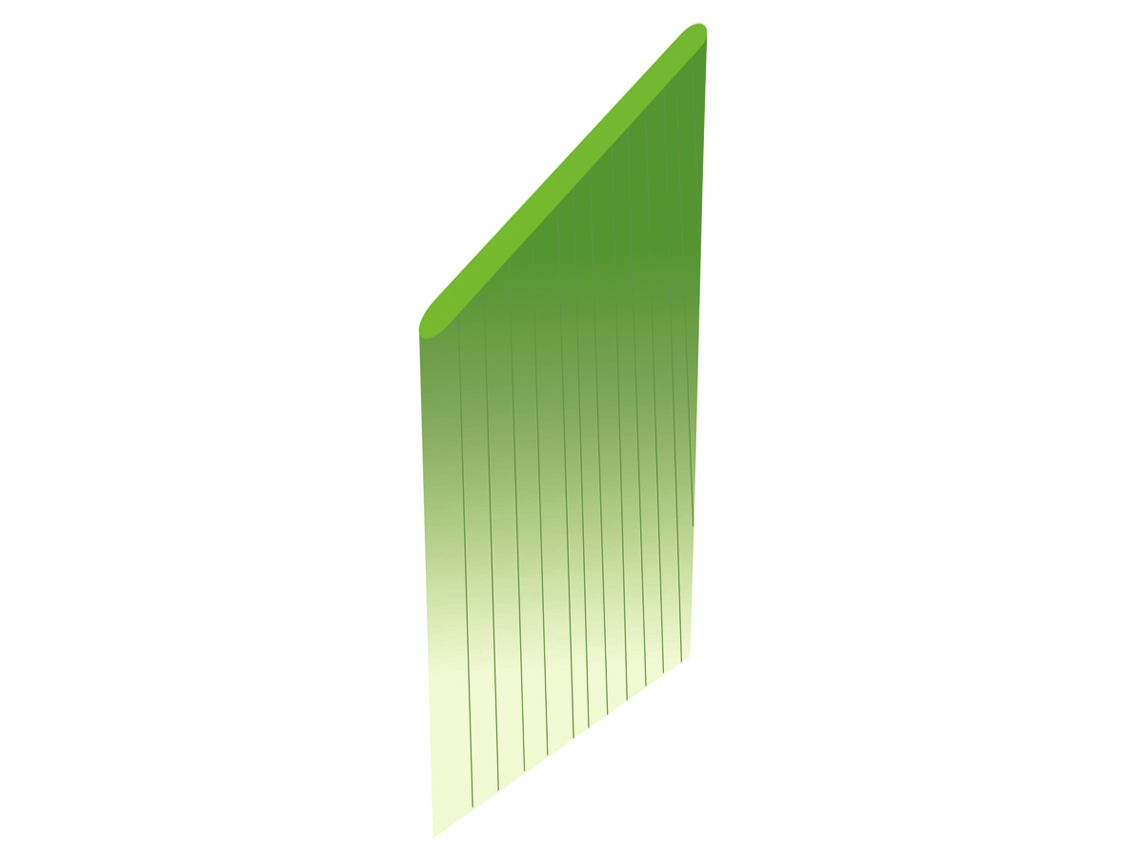

| Structure | Micromonofilament ( MMF ) |
| Shape | Micro-strips |
| Thickness | 60 µm |
| Width | 0,13 mm |
| Composition | Polyethylene |
| Colour shade | 6 colours in total 4 + 2 |
| Matte treatment | Yes |
| UV stabilised | Yes |
| Respectful with the environment | Yes, lead and cadmium free |
| Curly yarn | |
| Structure | Textured |
| Composition | Polypropylene |
| Colour | Beige and green |
Technical characteristics of the backing
| Primary support composition | Polypropylene |
| Primary support layers | 1 |
| Reinforced with net | Yes |
| Primary support weight | 155 grammes / m2 |
| Support coating | Latex |
| Support coating weight | 950 grammes / m2 |
General technical characteristics
| Type of manufacturing system | Tufted cut pile + curly yarn |
| Gauge | 3/8” |
| Stitches per m2 | 26250 ( +/- 10% ) |
| Stitches rate per 10cm | 25 ( +/- 1 ) |
| Pile height | 35mm ( +/- 5% ) |
| Total height | 37mm ( +/- 5% ) |
| Pile weight | 1970 gr /m2 ( +/- 10% ) |
| Total weight | 3075 gr /m2 ( +/- 10% ) |
| Dimensional stability | +/- 0,60 % |
| Water permeability | 40 litres /minute / m2 |
| Installation | Floating without silica sand infill ( optional ) |
