Specifications for searchings
Pile height ( mm )50
Pile weight ( gr/m2 )3096
Density ( stitches/m2 )28350
| SUITABLE LEVEL OF USE | TYPICAL USES |
| Intense, it is going to be stepped on continuously | Gardens of apartment block communities, condominium communities, community pools, etc... |
| High, it will be stepped on frequently | Private gardens, swimming pools or any other frequently walked-on area |
| Medium, you will step on it just occasionally | Private gardens, terraces, penthouse apartments, swimming pools or other less frequented areas |
| Low, merely decorative | Ornamental, decorative gardens, roundabouts, separators, shop windows, fairs, events, etc... |

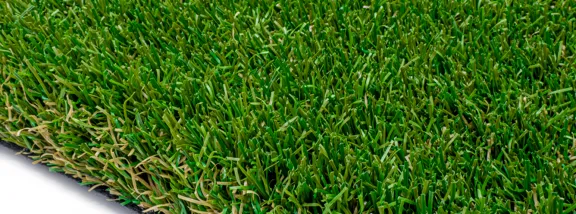

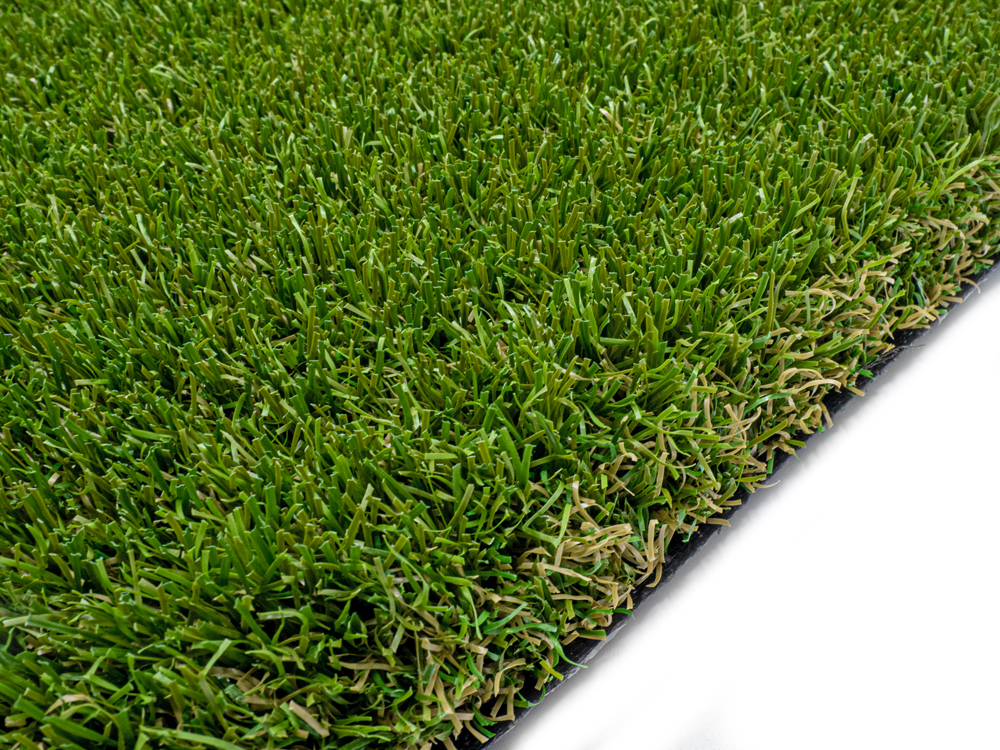

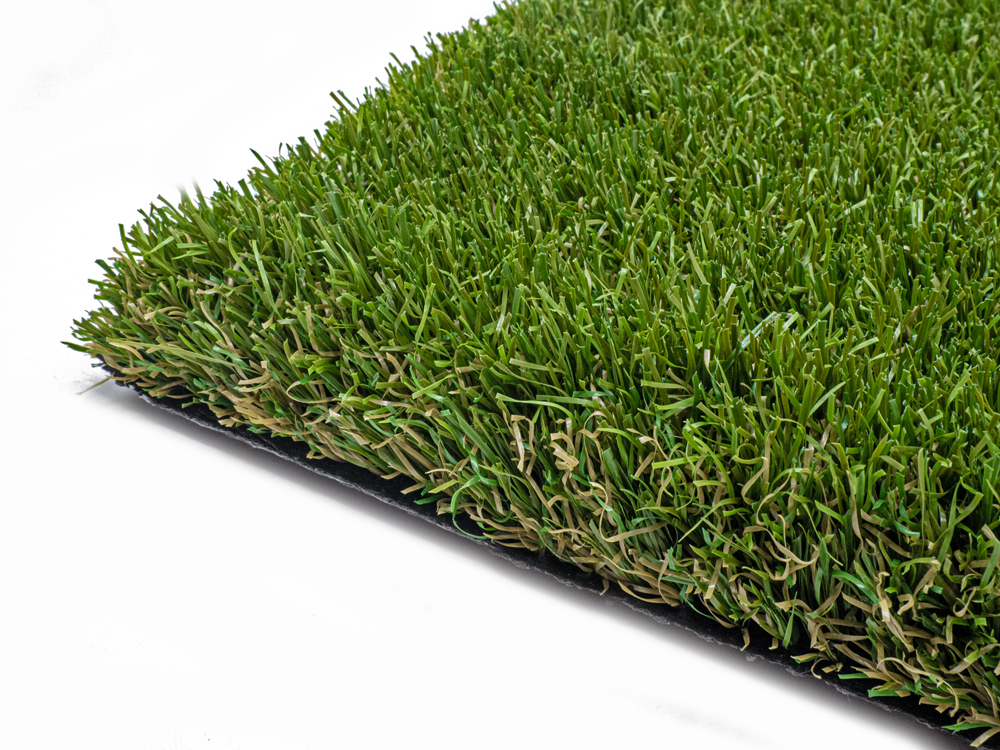

KYOTO: imperial beauty
Inspired by the beauty of the Kyoto Golden Pavilion, like its gardens and the reflection of its lagoon, at SUMIGRAN we have developed and created the most beautiful grass model on the market

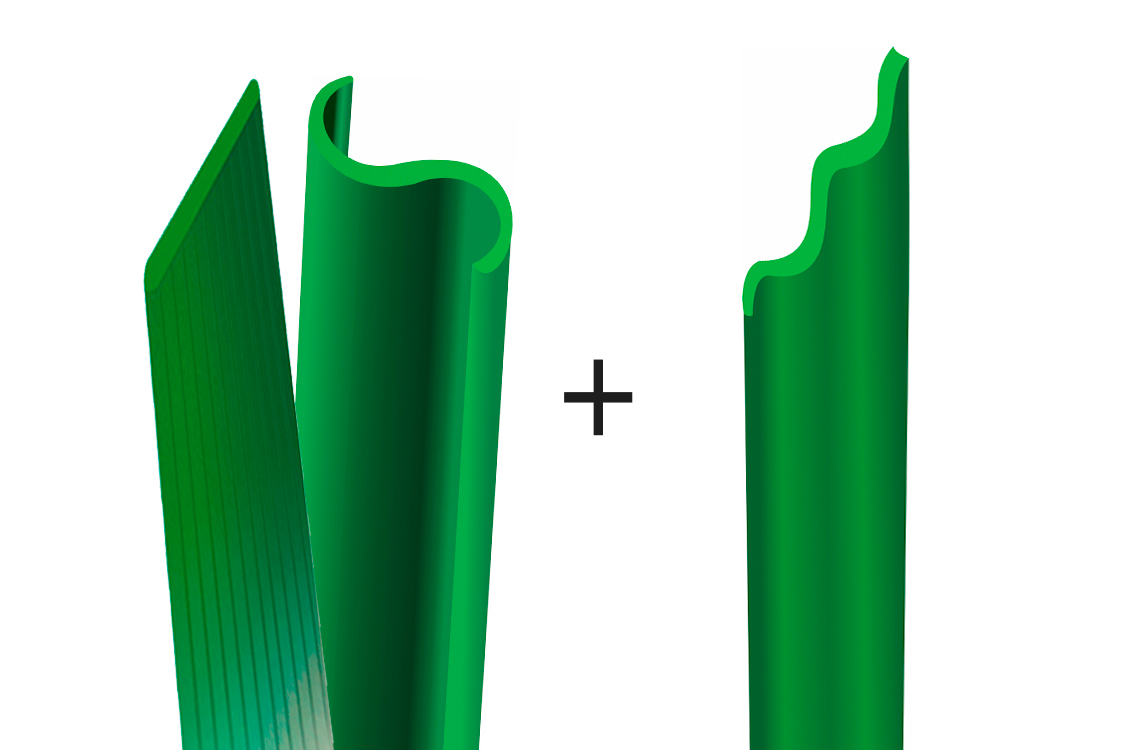

Using TENCATE fiber with MINT technology and composed of 6 shades of color, its straight, extremely soft, filaments, extruded with “micro-strips” offer a more natural finish with less reflections and shine, combined with the hybrid fiber of polyethylene and polypropylene in its filaments. Curled from the base to provide a balanced and extraordinary softness and very a natural texture
The feel of the product is almost addictive and at the same time, the image it offers once installed is of great naturalness and harmony. Conveying to the user a sense of balance and well being when viewing their garden with the Kyoto artificial grass
Inspired in engineering by “Kansei”, meaning “the pleasure of using a product”. The Kyoto turf transmits excitement to those who enjoy it

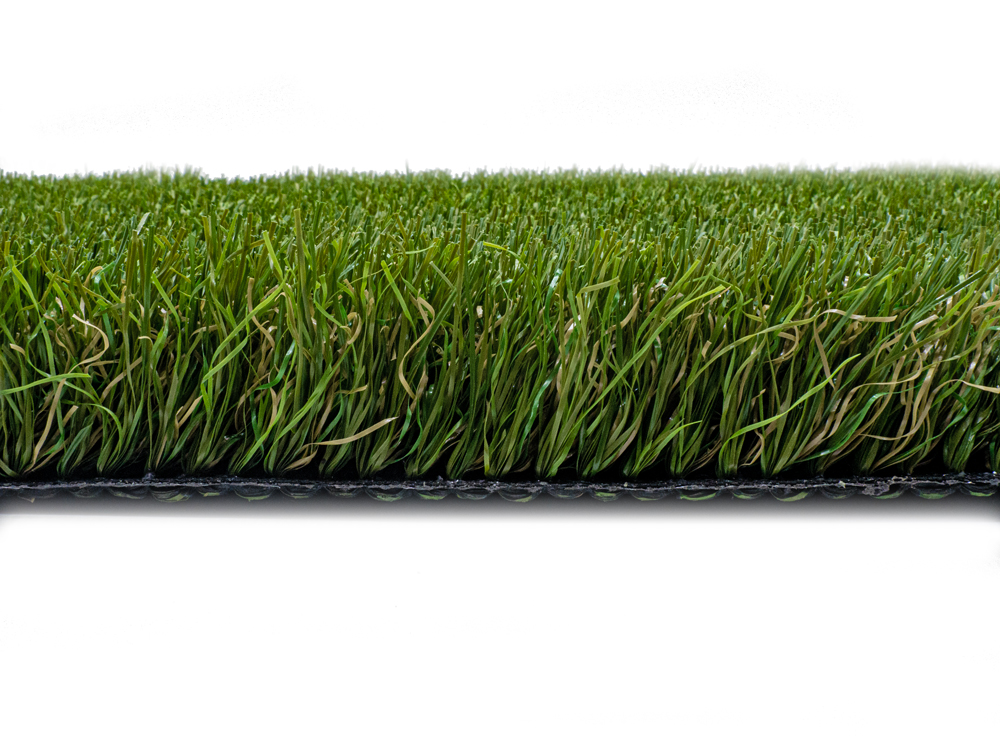

The KYOTO turf has been designed in a 50 mm thread height, with a configuration of straight and curled filaments in 12 + 6. The curled filaments are almost the same height as the straight strands so we have a nice equilibrium of fibers mixed together, which offers greater body to the final product
A very high density of 29,400 stitches / m2 completes the technical detail to realize what is today one of the best models in the world
“Move and the road will appear”
Using TENCATE fiber with MINT technology and composed of 6 shades of color, its straight, extremely soft, filaments, extruded with “micro-strips” offer a more natural finish with less reflections and shine, combined with the hybrid fiber of polyethylene and polypropylene in its filaments. Curled from the base to provide a balanced and extraordinary softness and very a natural texture
The feel of the product is almost addictive and at the same time, the image it offers once installed is of great naturalness and harmony. Conveying to the user a sense of balance and well being when viewing their garden with the Kyoto artificial grass
Inspired in engineering by “Kansei”, meaning “the pleasure of using a product”. The Kyoto turf transmits excitement to those who enjoy it
The KYOTO turf has been designed in a 50 mm thread height, with a configuration of straight and curled filaments in 12 + 6. The curled filaments are almost the same height as the straight strands so we have a nice equilibrium of fibers mixed together, which offers greater body to the final product
A very high density of 29,400 stitches / m2 completes the technical detail to realize what is today one of the best models in the world
“Move and the road will appear”
Images
Formats and dimensions
Technical characteristics of the yarn
| DTEX | 10000 |
| Filament configuration | 12 straight + 6 curly |
| Straight yarn | |
| Structure | Monofilament TENCATE ( both yarns ) |
| Shape | Micro-strips ( both yarns ) |
| Composition | Polyethylene ( both yarns ) |
| Yarn 1 colour shade | Two-tone green ( two colours ) |
| Yarn 2 colour shade | Two-tone green ( two colours ) |
| Matte Treatment | Yes |
| UV stabilised | Yes |
| Respectful with the environment | Yes, lead and cadmium free |
| Curly yarn | |
| Structure | Texturised |
| Composition | Hybrid ( Polypropylene + Polyethylene ) |
| Colour | Green |
Technical characteristics of the backing
| Primary support composition | Polypropylene + net |
| Primary support layers | 1 |
| Reinforced with net | Yes |
| Primary support weight | 150 grammes / m2 |
| Support coating | Latex |
| Support coating weight | 1000 grammes / m2 |
General technical characteristics
| Type of manufacturing system | Tufted cut pile + curly yarn |
| Gauge | 3/8” |
| Stitches per m2 | 29400 ( +/- 10% ) |
| Stitches rate per 10cm | 27 ( +/- 1 ) |
| Pile height | 50mm ( +/- 5% ) |
| Total height | 52mm ( +/- 5% ) |
| Pile weight | 3096 gr /m2 ( +/- 10% ) |
| Total weight | 4246 gr /m2 ( +/- 10% ) |
| Dimensional stability | +/- 0,60 % |
| Water permeability | 40 litres / minute / m2 |
| Installation | Floating without silica sand infill ( optional ) |
